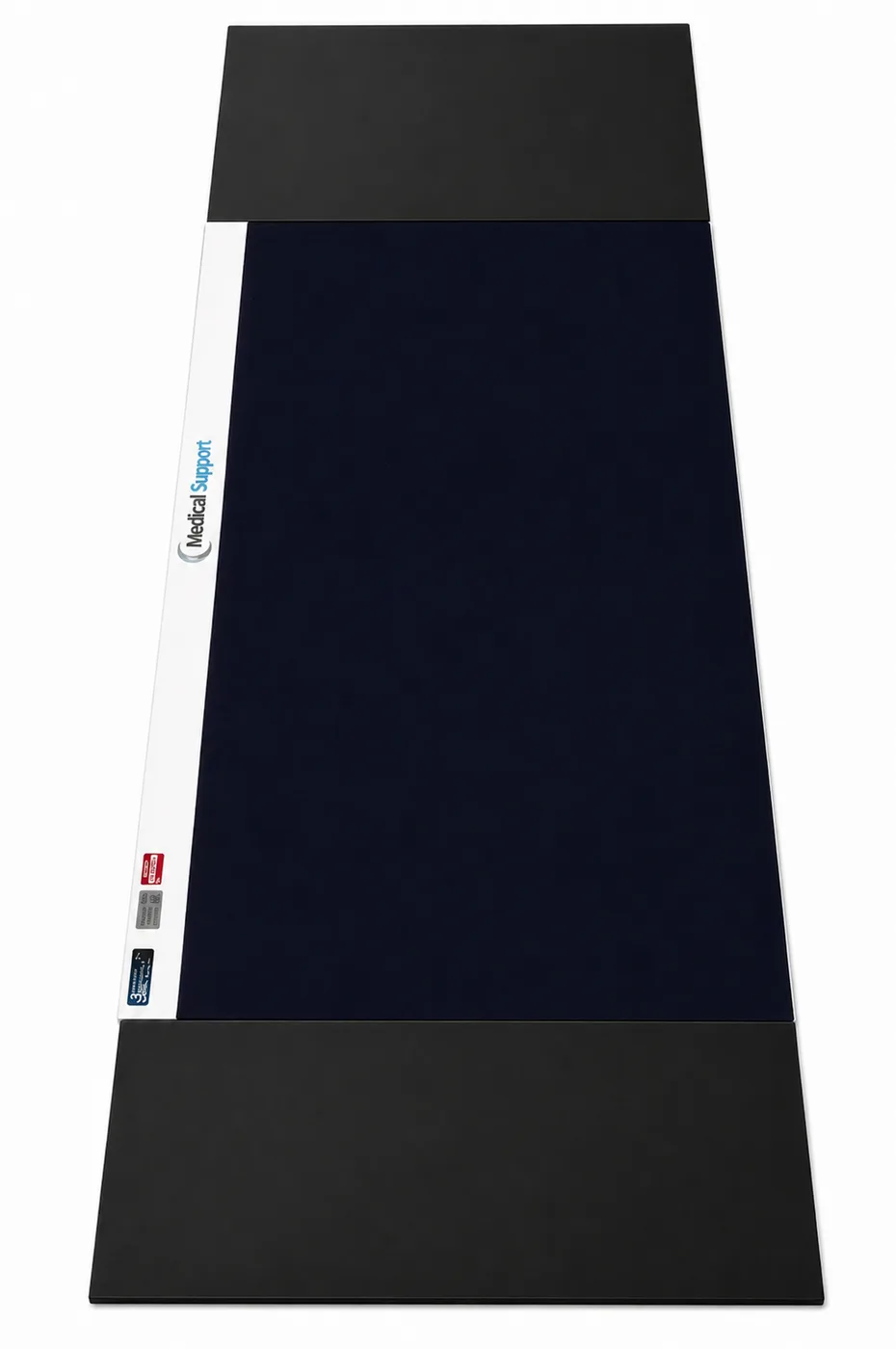

Cristal Sport – 3D baropodometric platform
Piattaforma baropodometrica 3D da 150 × 50 cm, configurata con 3 moduli, progettata per l’analisi della distribuzione delle pressioni plantari e dei principali parametri biomeccanici in condizioni statiche e dinamiche, con tecnologia 3D UltraSensor e software BioMetric Software (BMS).
The English version of this content is not available yet — the Italian text is shown below.
Price on request
This product is configured to order. Submit a quote request and our team will respond with pricing and lead time.
Request informationShips in 24–48 hours
What's included
Medical Support Professional PC
Dedicated PC supplied by Medical Support, configured and tested by the company's technical department for use with the platform and BioMetric Software (BMS). The supplied PC will in any case meet or exceed the technical specifications recommended for the system.
PC Power Cable
Power cable supplied with the dedicated PC for connection to the electrical power supply.
Baropodometric Platform Power Cable
Power cable supplied for connecting the baropodometric platform to the electrical power supply.
USB Connection Cable
USB cable supplied for connecting the baropodometric platform to the dedicated PC and enabling communication with the BioMetric Software (BMS).
Supplied with the product as confirmed by the supplier.
Supply information
- Manufacturer
- Esseffe Business & Consulting s.r.l.s.
- Seller
- Medical Support s.r.l.
Regulatory compliance
Regulatory information entered by MedNexus for this item. Empty fields are not published.
- CE marking
- Not declared
Certifications
- OtherCE · MDR 2017/745Dichiarato dal fornitore nella scheda tecnica Cristal — organismo notificato da confermare
- Platform dimensions
- 150 x 50 cm
- Sensor type
- Resistive 3D UltraSensor
- Total number of sensors
- 53.000
- Sensor density (XY resolution)
- 7 sensors/cm²
- Scanning frequency
- 40 Hz (40 frame/sec)
- Z resolution (pressure)
- 1 g/cm²
- Maximum pressure
- 120 N/cm²
- Accuracy
- ± 3%
- Interface / cable
- USB 2.0 / 3 m
- Software
- New BioMetric Software (BMS)
- Compatible operating system
- Windows 10 / 11
- Scan / examination type
- Static · Dynamic · Stabilometric
- Power consumption
- ≤ 500 mA
- Operating temperature
- 10 °C – 40 °C
- Warranty included
- 1 year
- Recommended computer · Processor
- Intel Core i7 or higher
- Recommended computer · RAM
- 16 GB or higher
- Recommended computer · Storage
- 256 GB SSD or higher
- Recommended computer · Monitor resolution
- 1920 × 1080 or higher
- Manufacturer part number
- CRISTAL-S
